Description

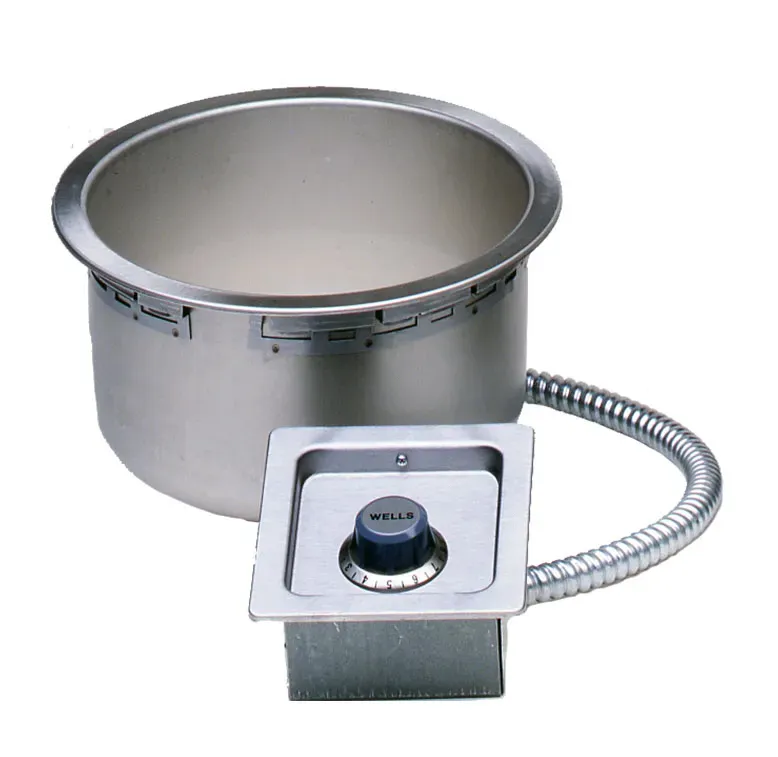

Wells SS-10TDU heavy-duty, top-mount, drop-in round food warmer is designed to hold heated foods at safe and fresh serving temperatures. Accommodates standard 11 quart round inset pans, one-piece stainless steel top flange and heavy-gauge, deep-drawn stainless steel warming pans. Temperature-ready indicator lights and powerful tubular heating elements are located under the warming pans for quick and efficient heating and for even heat distribution. High limits prevent overheating, and Wellsloks for quick and easy installation are standard features. Thermostatic Control, Drain, Non-Insulated, UL Approved, 120V

Specifications

Number of Wells	1
Capacity	11 quart
Cutout Height	11.12 Inch
Width	12"
Depth	12"
Area (in)	12" x 12" x 9-1/2"
Voltage	120v
Phase	1PH
Amps	6.9 amps
Wattage	825 watts
Cutout Depth	9.5 Inch
Height	9.5"
Design	built-in, drop-in
Safety and Compliance	cULus, NSF, UL
Power Type	electric
Plug Type	Field Wired Per Local Code
Product Type	hot food well unit
Drain Type	Individual Drains
Features	non-insulated
Shape	round
Material	stainless steel
Temperature Control	thermostat controls, thermostatic controls
Installation Type	top mount
Drain Location	Underneath
