Wells, MOD-527TDM, Hot Food Well Unit, Drop-In, Electric, 208V, 70.5" W, 30.56" D

SKU #: MOD-527TDM
Description

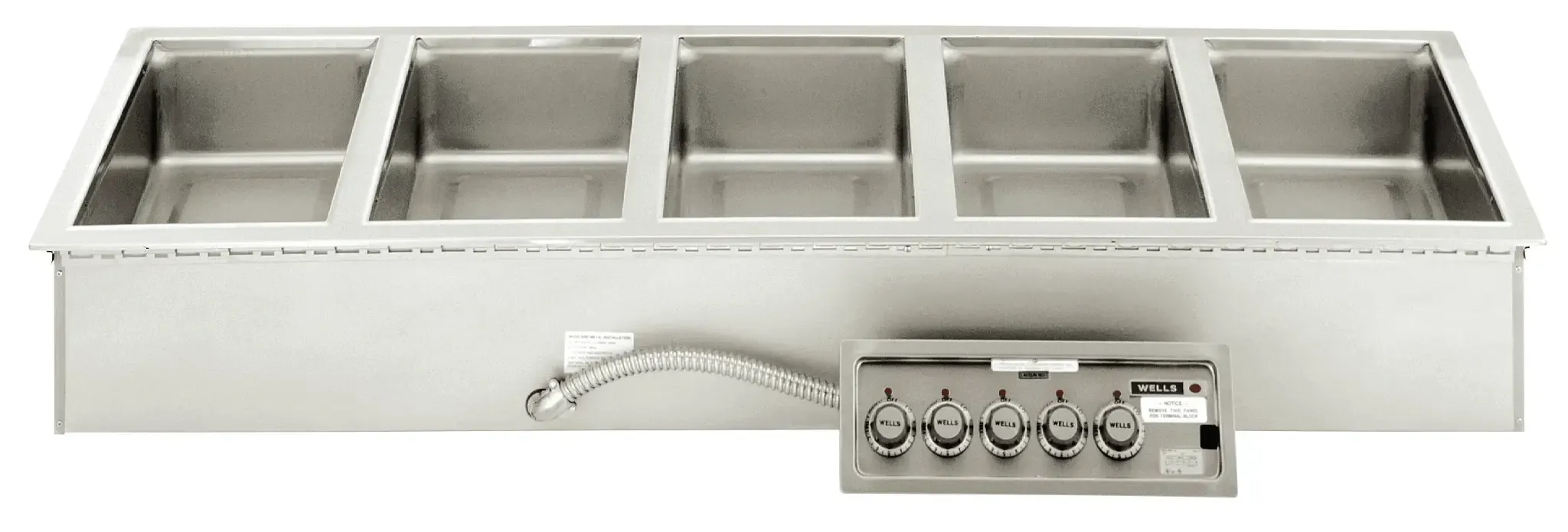

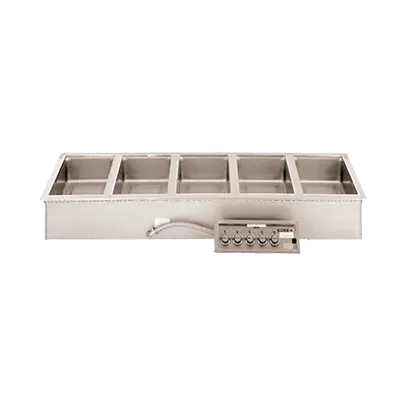

Wells MOD-527TDM heavy-duty, top-mount, drop-in, Modular food warmer is designed to hold heated foods at safe and fresh serving temperatures. Unit Accommodates Extra Deep 12” x 27”, 4/3rd food pans and accommodates 4 each 1/3 size pans per well or equivalent fractional inset pans. Unit is designed for wet or dry operation. One-piece stainless steel top flange and heavy-gauge, deep-drawn stainless steel warming pans are standard features on all models. WellsLoks are standard for quick and easy installation. Sides, front, back, and bottom are fully insulated, Individual controls for each well, High-limits prevent overheating, and powerful tubular heating elements are located under the warming pans for quick, efficient, and even heating. Five pans, Thermostat control, Drain with Manifold, 208/240V
?
Specifications
Capacity
(4) 1/3 pan
Wattage
1240.0
Voltage
208v
Cutout Height
22.5
Amps
29.8 amps
Depth
30.56"
Phase
3PH
Number of Wells
5
Width
70.5
Area (in)
71.5 Inch X 30.5625 Inch X 9.75 Inch
Cutout Depth
9.75 Inch
Height
9.75"
Material
aluminum, stainless steel
Design
built-in, drop-in
Safety and Compliance
cULus
Drain Type
Drains With Manifold
Power Type
electric
Plug Type
Field Wired Per Local Code
Product Type
hot food well unit
Features
insulated, Made in USA
Shape
rectangular
Temperature Control
thermostat controls, thermostatic controls
Installation Type
top mount
Drain Location
Underneath
