Description

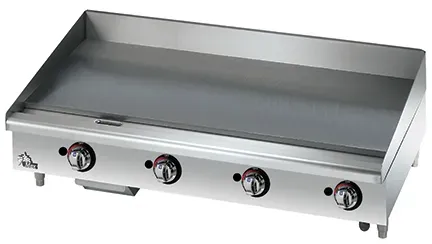

Star-Max®manual gas griddles are a perfect match for the budget minded operator. For breakfast, lunch or dinner, the Star-Max manual control griddles out-perform the competition. Star-Max® griddles feature 1” thick polished steel griddle plate and are available in 15”, 24” 36” and 48” widths. 28,300 BTU aluminized burner every 12” of width controlled by a modulating thermostatic, 3/4” N.P.T. male gas connection with convertible pressure regulator, and 4” adjustable legs. Griddles operate on Natural or Propane gas.

Specifications

Gas Inlet Size	0.75 Inch
Thickness	1"
Plate Thickness	1.0 Inch
BTU	113200.0 BTU
Height	15.5"
Minimum Temperature	150.0 Fahrenheit
Cooking Area Plate Depth	21.0 Inch
Depth	29"
Number of Controls	4
Number of Burners	4 burners
Maximum Temperature	450.0 Fahrenheit
Area (in)	48 Inch X 29 Inch X 15.5 Inch
Width	48.0 Inch
Features	Adjustable legs, Made in USA
Color	chrome
Finish Material	Chrome Plated
Design	Countertop, Indoor
Safety and Compliance	cULus, UL EPH Classified
Power Type	gas
Product Type	griddle
Durability and Resistance	Medium-Duty
Gas Type	Propane
Shape	Rectangular
Material	Stainless Steel
Temperature Control	Thermostatic
